LCMS Nitrogen Gas Generator

LCMS Nitrogen Gas Generator
LCMSMS Nitrogen Air Gas Generator
Nitrogen Generator for LCMS
Tri Gas LCMSMS Gas Generator

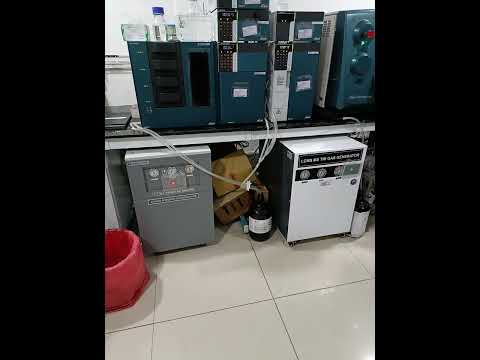

LC-MS-MS Nitrogen Gas Generator

LC-MS-MS Nitrogen Gas Generator
  • LC-MS-MS Nitrogen Gas Generator
  • LC-MS-MS Nitrogen Gas Generator
  • LC-MS-MS Nitrogen Gas Generator
  • LC-MS-MS Nitrogen Gas Generator
Get Best Quote
Approx. Price: Rs 3.15 Lakh / PieceGet Latest Price

Product Details:

Minimum Order Quantity1 Piece
Brand/MakeAthena
Available Automation GradeAutomatic, Semi-Automatic
Flow rate Capacity12 LPM ( filtered zero air ), 8 LPM ( purified dry air ), 4 LPM (pure nitrogen)
Pressure5 kg/cm2 or 60 psig
Purity99.99%
Moisture5 ppm
Method of PurificationPressure Swing Adsorption
Room temperature5 Degree C - 45 Degree C
Startup Time1 hour
Input Voltage230 V AC, 50 Hz, 1 Phase, 2 Amp

LC-MS-MS Nitrogen Gas Generator

Introduction:
  • Nitrogen Generator produces a continuous flow of high purity Nitrogen at the selected pressure.
  • The modular pressure swing adsorption (PSA) unit operates with alternating pressure increase and decrease
  • Untreated air flows under pressure through the reaction towers containing carbon molecular sieves adsorber.
  • Moisture, CO, CO2, THC, O2 and other unwanted components in the air are adsorbed, leaving Nitrogen Gas of required purity.
  • During the desorption cycle, the trapped substances adsorbed are released again at low pressure and the adsorber is ready for next cycle.
  • Flow range available from 10 LPM to 30 LPM and above.

Features:
  • Deliver constant pressure & flow: Fully Automatic Programmable System
  • Easy Maintenance and space-saving: Effortless and easy operation
  • Improves instrument performance
  • Fully regenerative, durability with PSA technology (pressure swing absorption)
Request
Callback
Yes! I am Interested

Nitrogen Generator for LCMS

Nitrogen Generator for LCMS
  • Nitrogen Generator for LCMS
  • Nitrogen Generator for LCMS
  • Nitrogen Generator for LCMS
  • Nitrogen Generator for LCMS
Get Best Quote
Approx. Price: Rs 3.25 Lakh / UnitGet Latest Price

Product Details:

Minimum Order Quantity1 Unit
Design TypeCustomised, Standard
Brand/MakeAthena
ModelATG-LCMS
Capacity35-40 lpm
Moisture2 ppm
Flow Rate10 LPM to 30 LPM
Electrical requirements without Compressor230 V AC, 50 Hz, 1 Ph, 2 Amp
Startup time1 hrs / programmable timer
Room temperature5 Temp C - 45 Temp C
Method of purificationPressure Swing Adsorption

Nitrogen Generator for LCMS:

Nitrogen Gas Generator produces a continuous flow of high purity Nitrogen at the selected pressure. The modular pressure swing adsorption (PSA) unit operates with alternating pressure increase and decrease. Untreated air flows under pressure through the reaction towers containing carbon molecular sieves adsorber. Moisture, CO, CO2, THC, O2 and other unwanted components in the air are adsorbed, leaving Nitrogen Gas of required purity. During the desorption cycle, the trapped substances adsorbed are released again at low pressure and the adsorber is ready for next cycle.

Technical Specifications:

SpecificationsFor LC-MS (TNG-02L)For LC-MS-MS (TNG-02LS) (for Sciex model)
Flow rate Capacity of N2 Generator6 to 30 LPM (as per selection of model)12 LPM (filtered zero air),8 LPM ( purified dry air), 4 LPM (pure nitrogen)
Pressure5 kg/cm² or 100 psig / 60 psig
Purity100.00%> 99.995%
Moisture2 ppm2 ppm
Total Hydro Carbon< 0.5 ppm< 0.5 ppm
CO & CO2< 2 ppm< 2 ppm
Micro Particulates< 0.01μ< 0.01μ
Request
Callback
Yes! I am Interested

LCMS Tri Nitrogen Gas Generator for AB Sciex Systems

LCMS Tri Nitrogen Gas Generator for AB Sciex Systems
  • LCMS Tri Nitrogen Gas Generator for AB Sciex Systems
  • LCMS Tri Nitrogen Gas Generator for AB Sciex Systems
  • LCMS Tri Nitrogen Gas Generator for AB Sciex Systems
  • LCMS Tri Nitrogen Gas Generator for AB Sciex Systems
Get Best Quote
Approx. Price: Rs 2.95 Lakh / PieceGet Latest Price

Product Details:

Minimum Order Quantity1 Piece
Capacity0-100 lpm
Usage/ApplicationLaboratory
Brand/MakeAthena
Automation GradeAutomatic
MaterialSteel
Automatic GradeAutomatic
Purity99.999%
Frequency50KHzs
Voltage220 V AC 50 hzs
Size500 x 600 x 700 mm
ColorAthena Grey
Weight60-80 kgs
DesignCompact Size
Flow Rate10 lpm -70 lpm
Inlet Pressure0-7 Bar
Main DisplayDigital
ConditionNew

Features:
  • Easy maintenance and space saving
  • Effortless and easy operation
  • Improves instrument performance

Salient Features:
  • Deliver constant pressure & flow
  • Fully Automatic Programmable System
  • Easy Maintenance and space saving
  • Effortless and easy operation
  • Improves instrument performance
  • Fully regenerative, durability with PSA (pressure swing absorption) technology

Nitrogen Generator for LC-MS / LC-MS-MS:

  • Nitrogen Gas Generator produces a continuous flow of high purity Nitrogen at selected pressure.
  • The modular pressure swing adsorption (PSA) unit operates with alternating pressure increase and decrease.
  • Untreated air flows under pressure through the reaction towers containing carbon molecular sieves adsorber. Moisture, CO, CO2, THC, O2 and other unwanted components in the air are adsorbed, leaving Nitrogen Gas of required purity.
  • During the desorption cycle, the trapped substances adsorbed are released again at low pressure and the adsorber is ready for next cycle.
  • Flow range available from 10 LPM to 30 LPM and above.



Specifications:

Technical Specification for N2 Generator for LCMS:

SPECIFICATIONS

For LC-MS (TNG-02L)

For LC-MS-MS (TNG-02LS) (for Sciex model)

Flow rate Capacity of N2 Generator

6 to 30 LPM (as per selection of model)

12 LPM (filtered zero air)

8 LPM ( purified dry air)

4 LPM (pure nitrogen)

Pressure

5 kg/cm² or 100 psig or 60 psig

Purity

99.90%

> 99.99%

Moisture

5 ppm

5 ppm

Total Hydro Carbon

< 0.5 ppm

< 0.5 ppm

CO & CO2

< 2 ppm

< 2 ppm

Micro Particulates

< 0.01μ

< 0.01μ

Method of purification

Pressure Swing Adsorption

Room temperature

5 °C - 45 °C

Startup time

1 hrs / programmable timer

Electrical requirements without Compressor

230 V AC, 50 Hz, 1 Ph, 2 Amp


Request
Callback
Yes! I am Interested

Nitrogen Generator for LCMS & LC-MS-MS

Nitrogen Generator for LCMS & LC-MS-MS
  • Nitrogen Generator for LCMS & LC-MS-MS
  • Nitrogen Generator for LCMS & LC-MS-MS
  • Nitrogen Generator for LCMS & LC-MS-MS
  • Nitrogen Generator for LCMS & LC-MS-MS
Get Best Quote
Approx. Price: Rs 3.25 Lakh / PieceGet Latest Price
Product Brochure

Product Details:

Minimum Order Quantity1 Piece
Brand/MakeAthena
ModelATNG-LS
Room temperature5 Degree C to 45 Degree C
Electrical requirements without Compressor230 V AC, 50 Hz, 1 Ph, 2 Amp
Startup time1 hrs / programmable timer
Method of purificationPressure Swing Adsorption

Introduction:
Nitrogen Gas Generator produces a continuous flow of high purity Nitrogen at the selected pressure. The modular pressure swing adsorption (PSA) unit operates with alternating pressure increase and decrease. Untreated air flows under pressure through the reaction towers containing carbon molecular sieves adsorber. Moisture, CO, CO2, THC, O2 and other unwanted components in the air are adsorbed, leaving Nitrogen Gas of required purity. During the desorption cycle, the trapped substances adsorbed are released again at low pressure and the adsorber is ready for next cycle. Flow range available from 10 LPM to 30 LPM and above.


Technical Specifications:

SpecificationsFor LC-MS (TNG-02L)For LC-MS-MS (TNG-02LS) (for Sciex model)
Flow rate Capacity of N2 Generator6 to 30 LPM (as per selection of model)12 LPM (filtered zero air), 8 LPM ( purified dry air), 4 LPM (pure nitrogen)
Pressure5 kg/cm² or 100 psig or 60 psig
Purity99.90%> 99.99%
Moisture5 ppm5 ppm
Total Hydro Carbon< 0.5 ppm< 0.5 ppm
CO & CO2< 2 ppm< 2 ppm
Micro Particulates< 0.01μ< 0.01μ
Request
Callback


Additional Information:

  • Item Code: LCMS
  • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
  • Port of Dispatch: Mumbai
  • Production Capacity: 20 month
  • Delivery Time: 1-2 week
  • Packaging Details: Wooden Box Packing
Yes! I am Interested

LC/MS Nitrogen Generator

LC/MS Nitrogen Generator
  • LC/MS Nitrogen Generator
  • LC/MS Nitrogen Generator
  • LC/MS Nitrogen Generator
  • LC/MS Nitrogen Generator
Get Best Quote
Approx. Price: Rs 2.95 Lakh / PieceGet Latest Price

Product Details:

Minimum Order Quantity1 Piece
Automation GradeAutomatic
MaterialSteel
Model Name/NumberATN-LCMSMS, LCMS
Capacity10-70 lpm
Dew Point-70C
Gas TypeNitrogen, Dry Air and Zero Air
Design TypeCustomised, Standard
Frequency50 Hzs
Weight60-80 kgs
Power150W
Voltage220V
Purity99.9999%
Size550 x 600 x 750 mm
ConnectivitySS tube
ColorAthena Grey
DisplayDigital
Brand/MakeAthena
Output Flow0-100 Lpm

Introduction:
  • Nitrogen Gas Generator produces a continuous flow of high purity Nitrogen at the selected pressure.
  • The modular pressure swing adsorption (PSA) unit operates with alternating pressure increase and decrease.
  • Untreated air flows under pressure through the reaction towers containing carbon molecular sieves adsorber. Moisture, CO, CO2, THC, O2 and other unwanted components in the air are adsorbed, leaving Nitrogen Gas of required purity.
  • During the desorption cycle, the trapped substances adsorbed are released again at low pressure and the adsorber is ready for next cycle.
  • Flow range available from 10 LPM to 30 LPM and above.

Specifications:

SpecificationsFor LC-MS (TNG-02L)For LC-MS-MS (TNG-02LS) (for Sciex model)
Flow rate Capacity of N2 Generator6 to 30 LPM6 to 30 LPM (as per selection of model)
12 LPM (filtered zero air), 8 LPM ( purified dry air), 4 LPM (pure nitrogen)
Pressure5 kg/cm² or 100 psig / 60 psig
Purity100.00%> 99.995%
Moisture2 ppm2 ppm
Total Hydro Carbon< 0.5 ppm< 0.5 ppm
CO & CO2< 2 ppm< 2 ppm
Micro Particulates< 0.01μ< 0.01μ
Method of purificationPressure Swing Adsorption
Room temperature5 °C - 45 °C
Startup time1 hrs / programmable timer
Electrical requirements without Compressor230 V AC, 50 Hz, 1 Ph, 2 Amp
Request
Callback
Yes! I am Interested
